PRODUCTS / Infantry Weapons

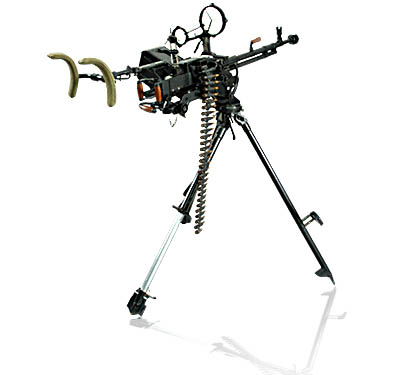

AntiAircraft Machine Gun 12.7 MM Type 54

An automatic weapon employing the 12.7 x 108mm API, APIT & Hard Core ammunition. Effective against low flying aircrafts, ground targets, specially light armoured vehicles, etc. The gun is supplied complete with tripod, anti-aircraft sighting system and a chromium plated spare barrel. This gun can also be mounted on tanks and APC both in the anti aircraft and ground modes.


TECHNICAL DATA
Weight
Gun complete with tripod 92 kg
Gun body 33 kg
Gun mount 53 Kg
Anti - air craft sight 2.2 kg
Ammunition box 14 Kg (with a 70 rounds link belt)
Traverse
Vertical traverse -26 to 78 deg
Horizontal traverse :
Air Targets 360 deg
Ground Targets 120 deg
Performance
Effective range:
In air 1,600 metres
On Ground 1,500 metres
Armour penetration:
From 800 metres 10 mm
From 500 metres 15 mm
Muzzle velocity 800 metres/sec.
Cyclic rate of fire 600 RPM
Cartridges used API, APIT
Packing
2 Guns bodies with 2AA sights, spare parts & accessories packed in a wooden box:
Size of box 126 x 43 x 47 cm
Weight of box 131 kg
Colour & Marking Army Green with Yellow/white stencilling
1 Gun mount with 10 ammunition boxes each contianing link belt for 70 cartridges packed in a wooden box:
Size of box 177 x 55 x 65 cm
Weight of box 155 Kg
Colour & Marking Army Green with Yellow / white stencilling
2 Guns mounts packed in a wooden box:
Size of box 177 x 55 x 65 cm
Weight of box 164 Kg
Colour & Marking Army Green with Yellow / white stencilling
